I. Product Overview

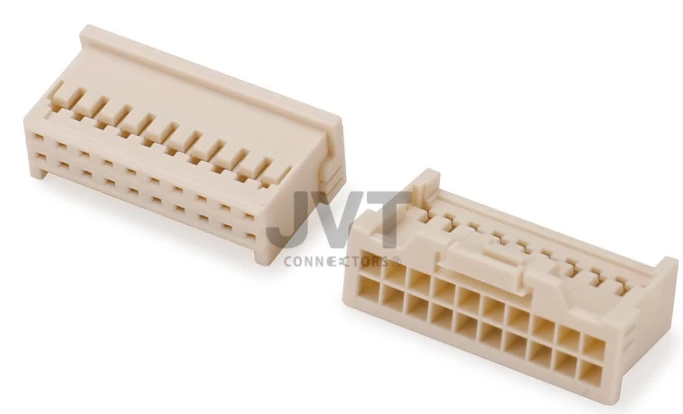

JVT2036 2.00 is a 2.00mm pitch wire-to-board connector designed with the core concept of "compact, reliable, anti-tangling and easy to use". It meets the high-density wiring requirements in multiple fields. Its key parameters are as follows:

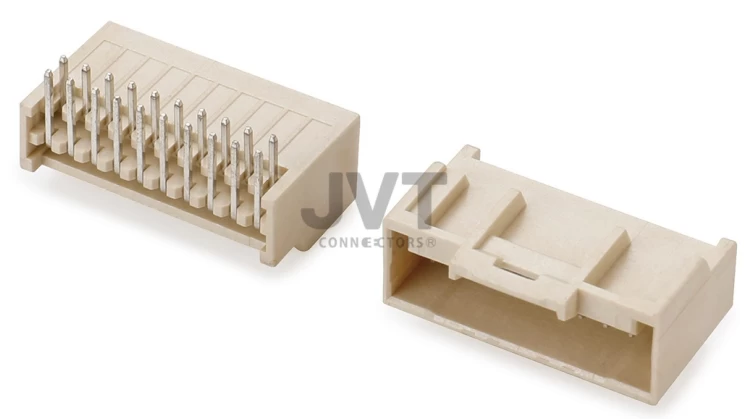

• Basic Specifications: 04-40 circuits, compatible with AWG#22-28 wires,      available in straight and right-angle designs
• Electrical Performance: Rated voltage 250V AC/DC, current 2.0-3.0A,      contact resistance ≤20mΩ, insulation resistance ≥1000MΩ
• Environmental Adaptability: Operating temperature range -40℃ to +105℃, UL94V-0 flame retardant rating,      vibration-resistant and suitable for harsh operations
• Compliance Certifications: UL and CSA certified, compliant with EU and      China RoHS standards

II. Core Technical Advantages

2.1 Anti-Tangling Internal Locking Design

Breaking through the defects of traditional external locking, the locking mechanism is built-in to fundamentally avoid wire damage or connection failure caused by wires tangling with latches. A "click" sound is heard when mating to intuitively confirm proper connection. Unlocking is convenient without damaging wires, improving assembly efficiency and usage safety.

2.2 Compactness and Space Optimization

The 2.00mm small pitch combined with the internal locking structure saves approximately 20% PCB space compared to traditional 2.54mm pitch connectors. It is suitable for space-constrained scenarios such as home appliances and automotive electronics, enhancing equipment integration.

2.3 High Reliability and Anti-Interference

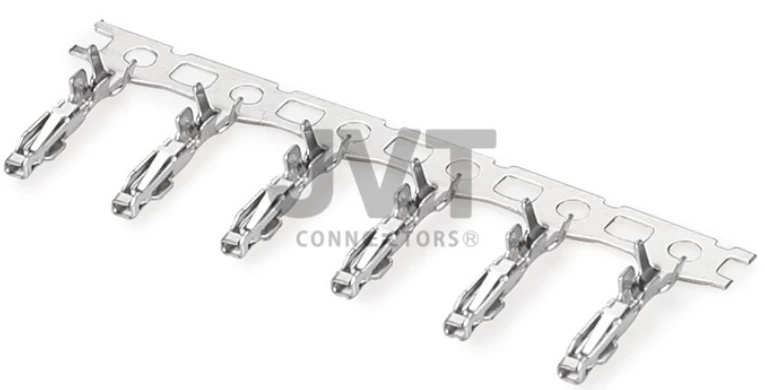

Polarity design of housing and terminals prevents misinstallation. The fully enclosed connector structure with four walls enhances mechanical protection and electromagnetic shielding. Brass tin-plated contacts are anti-oxidation and corrosion-resistant. Combined with the wide temperature range design, it maintains stable connection under harsh environments such as vibration and temperature changes, with a mating durability of 30-100 cycles.

2.4 Flexible Specifications and Strong Adaptability

Covering 10-40 circuits and AWG#22-28 wire range, it offers various packaging options such as bulk and tape-and-reel. It supports automated production lines and small-batch assembly needs, reducing customization costs and lead times.

III. Key Application Fields

3.1 Home Appliances

Suitable for dishwashers, ovens, washing machines and other equipment. The compact design saves internal space, and the vibration-resistant feature ensures circuits do not loosen during equipment operation. It guarantees stable transmission of power and signals, avoiding shutdowns caused by connection failures.

3.2 Automotive Electronics

Used in on-board GPS, entertainment systems, etc. The wide temperature range of -40℃ to +105℃ adapts to extreme vehicle conditions. The anti-vibration and oil-resistant properties ensure continuous and reliable transmission of positioning data and control signals, meeting the stringent standards of automotive electronics.

3.3 Industrial and Security

In industrial automation equipment (PLC, sensor networks), the high-density design meets complex wiring needs. In security monitoring and access control systems, long-term stable connections ensure uninterrupted monitoring signals, improving system reliability.

3.4 Medical Equipment

Applied in ECG monitors and other devices. Low contact resistance and stable connections ensure accurate transmission of vital sign data without delay or deviation, providing reliable support for medical diagnosis.

3.5 Typical Application Cases

Case 1: Control System of a Well-Known Brand's Smart Dishwasher

The high-end dishwasher of this brand needs to integrate multiple circuits such as washing pump control, water temperature monitoring, and door lock feedback in a narrow internal space. Traditional connectors are prone to contact loosening due to water flow vibration, and wire tangling with latches frequently causes assembly rework. After adopting the JVT2036 2.00 24-circuit right-angle connector, its compact size perfectly fits the internal layout of the equipment, saving 22% PCB space compared to the original 2.54mm pitch connector. The built-in locking structure completely solves the wire tangling problem, improving assembly efficiency by 35%. In a 12-month reliability test, the connection failure rate dropped from 4.2% of the original scheme to 0.1%, significantly reducing after-sales costs.

Case 2: Commercial Vehicle-Mounted Intelligent Terminal Module

An intelligent terminal developed by a commercial vehicle enterprise for its freight vehicles needs to integrate GPS positioning, fuel consumption monitoring, tachograph and other functions. The operating environment ranges from -35℃ in northern winters to +85℃ in southern summers, and it needs to withstand long-term vibration and diesel oil contamination. The JVT2036 2.00 30-circuit straight connector is used to connect the terminal's core board with external sensors. Its wide temperature range of -40℃ to +105℃ and UL94V-0 flame retardant rating adapt to extreme working conditions, and the brass tin-plated contacts effectively resist oil corrosion. Actual road test data shows that the terminal works continuously for 6 months without signal interruption, and the positioning data transmission error is controlled within 1 meter, meeting the precise needs of logistics scheduling.

Case 3: Industrial PLC Distributed IO Module

The PLC distributed IO module of an automation enterprise needs to access 16 channels of temperature and pressure sensor signals simultaneously. The module is installed in the distribution box of the production workshop, with limited space and high-frequency electromagnetic interference. The JVT2036 2.00 32-circuit connector is selected to achieve high-density connection between sensors and IO modules. The 2.00mm pitch design reduces the module volume by 18%, facilitating multi-module stacking installation. The fully enclosed connector structure with four walls enhances electromagnetic shielding, and the polarity anti-misinstallation design not only avoids module burnout caused by wiring errors but also improves the signal-to-noise ratio of sensor signal transmission by 20%, ensuring the accuracy of production parameter monitoring and helping to increase the production line yield by 5%.

Case 4: Portable ECG Monitor

A portable ECG monitor from a medical equipment manufacturer needs to balance data transmission stability and device portability. Traditional connectors have problems of large size and easy wire damage during mating and unmating. The JVT2036 2.00 16-circuit small connector is used to connect electrode pads with the host. Its anti-tangling unlocking design prevents medical staff from worrying about wire damage during operation, and the "click" sound during mating allows quick confirmation of proper connection. The contact resistance as low as 20mΩ ensures undiminished transmission of ECG signals. In practical applications in primary medical institutions, the device's data collection accuracy reaches 99.8%, and the host volume is reduced by 25% compared to the previous generation product, improving the portability of outdoor first aid.

Case 5: Intelligent Industrial Printer Control Module

A high-speed industrial printer from an office equipment enterprise needs to integrate 28 channels of control circuits such as printhead drive, paper sensor, and ink level monitoring in a narrow main control unit. Traditional connectors not only occupy a large space but also often cause signal transmission interruption due to printing vibration, resulting in missing prints and misprints. After adopting the JVT2036 2.00 28-circuit right-angle connector, its compact structure reduces the control module volume by 23%, adapting to the dense internal layout of the equipment. The built-in locking mechanism and anti-vibration design effectively resist high-frequency vibration during printer operation. Combined with excellent electromagnetic shielding performance, it avoids printing failures caused by circuit interference. The continuous printing stability of the equipment is improved from 92% to 99.5%, and the daily printing volume of a single device is increased by 15%.

Case 6: Vehicle-Mounted LiDAR Perception System

A LiDAR system developed by a new energy vehicle manufacturer for L2+ level autonomous driving models needs to stably transmit point cloud data and control signals in an operating environment of -30℃ to +80℃, while withstanding vibration and impact during vehicle operation. The JVT2036 2.00 36-circuit straight connector is used to connect the LiDAR probe with the domain controller. Its wide temperature range of -40℃ to +105℃ fully covers the working condition requirements, and the brass tin-plated contacts can resist oil and moisture erosion in the engine compartment. The polarity anti-misinstallation design avoids assembly errors, and the fully enclosed structure with four walls strengthens mechanical protection. In a 20,000-kilometer road test, the radar data transmission delay is always less than 5ms, and there is no connection interruption, ensuring the environmental perception accuracy of the autonomous driving system.

Case 7: Commercial Copier Scanning Unit

The high-speed scanning unit of a brand's commercial copier needs to process multiple circuits such as image sensor signals, light source control, and motor drive simultaneously. Long-term high-load operation of the equipment is prone to oxidation of contacts in traditional connectors, resulting in blurred scanning and streaks. After adopting the JVT2036 2.00 20-circuit connector, its low contact resistance feature ensures accurate transmission of image signals. The anti-oxidation contact design extends the service life of the connector from 15,000 hours of the original scheme to 30,000 hours. The compact size fits the narrow space of the scanning unit, and the anti-tangling design also improves the efficiency of line disassembly during equipment maintenance by 40%, significantly reducing after-sales maintenance costs and downtime.

IV. Core Advantages in Market Competition

Compared with competitors such as JST PH series and TE MCP series, JVT2036 2.00 has significant differentiated advantages:

• Wider circuit coverage (10-40 circuits vs. 2-16 circuits of JST PH      series)
• Wider operating temperature range (-40℃ to +105℃ vs. -25℃ to +85℃ of JST PH series)
• Unique anti-tangling design solves industry pain points, with no      similar functions in competitors
• 2.00mm pitch is more suitable for high-density layouts than 2.8mm      pitch of TE MCP series

V. Procurement and Selection Recommendations

• Selection: Select based on the number of circuits (reserve 10-20%      margin), wiring direction (straight/right-angle), and ambient temperature.      Prioritize referring to JVT's official 3D models and specifications.
• Quality: Focus on inspecting appearance, contact resistance and      certification marks during acceptance. For key applications, temperature      cycle and vibration tests are recommended.

VI. Summary

With "anti-tangling, high compactness and strong reliability" as its core competitiveness, JVT2036 2.00 occupies an advantageous position in the 2.00mm pitch connector market. Its rich specifications and wide environmental adaptability make it the preferred connection solution for home appliances, automotive, medical and other fields. In the future, with the miniaturization trend of electronic equipment, its application scenarios will be further expanded.
