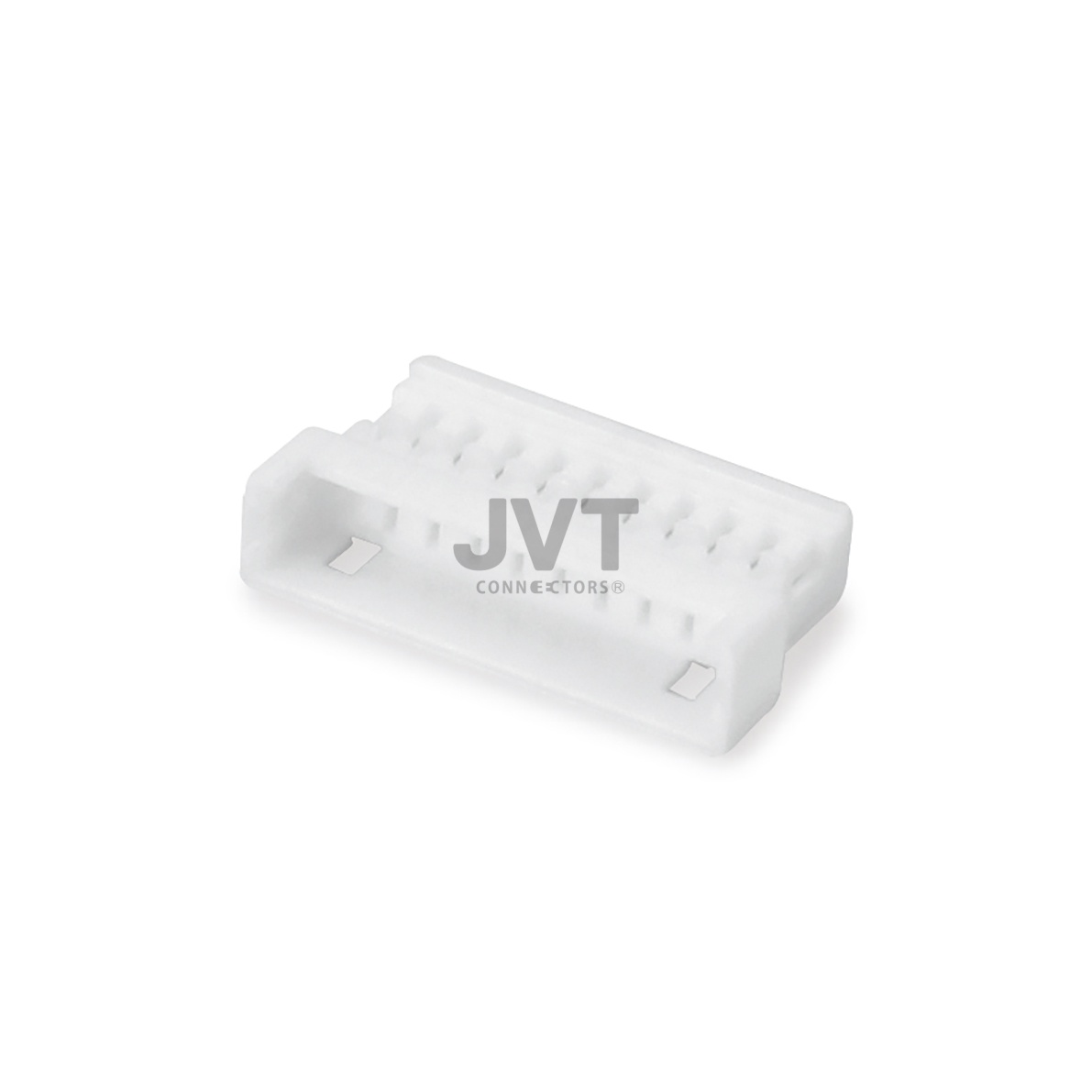

JVT1121H-XXW

category：Wire-to-Wire Connectors

download drawing Add to Quote List

detailed parameters

1.Product name JVT1121HXX-XXW

2.Product model 3.96mm HSG

3.Pitch 3.96mm (0.156

4.Poles 02~12

5.Voltage rating 250V AC,DC

6.Current rating 10A AC,DC

7.Withstanding Voltage 1500V AC/minute

8.Contact resistance(mΩ) 20mΩ

9.Insulation resistance(MΩ) 1000MΩ

10.Working temperature -40℃ ~ +105℃
